STEAMIX® 2032P — Premium

Description

Download Center

Model 2032P — Premium

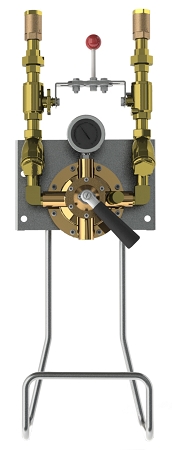

STEAMIX® Model 2032P is a steam/water mixing valve of
brass/stainless steel construction. The valve is supplied as standard
with integral inlet supply risers comprising 3/4″ Y-type strainers and
3/4″ ball valves cross-linked by a stainless steel bridge piece and
lever for simultaneous on/off control of both inlet supplies. The unit
is supplied fully assembled, pressure-tested and installed on a
stainless steel hose rack.  Stainless Steel dual scale top mount
Thermometer and Inlet Check Valves included.

STEAMIX® Steam and Water Hose Stations and Mixing Units will not pass live steam.

Steamix mixing valve, featured on all Steamix steam and water hose
stations by Armstrong, will not pass live steam in the event of either a
significant pressure reduction or complete failure of the cold-water
supply.

Steamix is designed to improve efficiency and reduce risk when
mixing steam and water for washdown. When your process demands high
washdown temperatures, adjusting the mix of steam and water becomes much
more difficult and dangerous. With the older style dual-globe valve
mixing “Y,” it is too easy to introduce too much steam—with risky
consequences for your personnel. Here’s why it’s no problem with
Steamix.

Safety

  • In the event of either a complete failure of the inlet cold-water
    supply or a reduction in cold-water pressure to below 20 (+/-5) psi (1.4
    bar), STEAMIX will respond with a complete shutdown of outlet flow.
  • If there is a structural failure of the primary operating component (diaphragm), STEAMIX will “fail safe” to cold water.
  • To prevent over-temperature selection by the user and the
    potential for overheated water and flash steam presentation common with
    other types of hose stations, STEAMIX is supplied with a
    single-temperature locking set.
