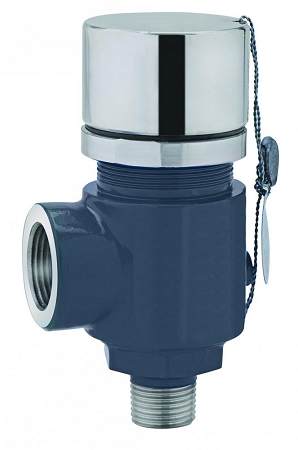

Safety Relief Valves

Description

Armstrong’s safety relief valves for refrigeration service are designed to provide emergency relief from excessive pressure in refrigerant containing vessels. These tamper-resistant valves are accurately set and sealed by qualified technicians at the factory.

Our safety valve design features the most reliable method of safely relieving pressure. The Teflon seal combined with a stainless steel crown ring provides outstanding sealing action. This combination assures a non-stick and accurate pop-off pressure release. The design incorporates an extra lift and pop-open feature for high-relieving capacity.

Request a Quote

Contact Form












    Features
    • Safe working pressure: 365 psig (25 bar)
    • Maximum Temperature Rating: 240°F (116°C)
    • Setting Range: 150 to 350 psig (10.4 to 24 bar)
    Standard Sizes
    Cat. No

    SRV 1520
    SRV 1525
    SRV 2020
    SRV 2025
    SRV 2025

    Size

    15mm x 20mm
    15mm x 25mm
    20mm x 20mm
    20mm x 25mm
    25mm X 32mm

    Inlet

    ½ in. BSPT (M)
    ½ in. BSPT (M)
    ¾ in. BSPT (M)
    ¾ in. BSPT (M)
    1in. BSPT (M)

    Outlet

    ¾ in. BSPT (M)
    1in. BSPT (M)
    ¾ in. BSPT (M)
    1in. BSPT (M)
    1 ¼ in. BSPT (M)

    *Butt weld connections are also available. Other sizes can be supplied upon special requests.
