3032 – Standard

Description

Model 3032 – Standard

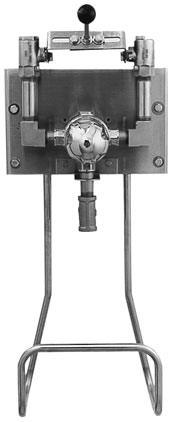

Rada 320 Thermostatic Mixing Valve supplied with integral risers for simultaneous on/off control of both inlet supplies. The unit is installed on a stainless steel hose rack that is suitable for wall or column installation.

Armstrong hot and cold water hose stations replace the basic Mixing Y with a Rada® 320 thermostatic mixing valve as the primary water temperature controller. With the Rada 320 you can:

  • Change outlet water temperature from full cold to the field-adjustable maximum limit stop in a single handle turn
  • Set and lock to a single temperature and maintain outlet
    temperatures +/-2°F (1°C) in the event of inlet pressure and/or
    temperature fluctuation or change
  • Protect the operator a thermal-shutdown feature if the cold water inlet supply fails



Download Center

Model 3032 – Standard

Rada 320 Thermostatic Mixing Valve supplied with integral risers for
simultaneous on/off control of both inlet supplies. The unit is
installed on a stainless steel hose rack that is suitable for wall or
column installation.

Armstrong hot and cold water hose stations replace the basic Mixing Y
with a Rada® 320 thermostatic mixing valve as the primary water
temperature controller. With the Rada 320 you can:

  • Change outlet water temperature from full cold to the field-adjustable maximum limit stop in a single handle turn
  • Set and lock to a single temperature and maintain outlet
    temperatures +/-2°F (1°C) in the event of inlet pressure and/or
    temperature fluctuation or change
  • Protect the operator a thermal-shutdown feature if the cold water inlet supply fails

IMPORTANT NOTE: Thermostatic products used by our competitors for
this application cannot provide a temperature range from full cold to
the field-adjustable maximum limit stop. Nor can they access
temperatures within 5°F (2°C) of either inlet supply temperature.

Various hose lengths, spray nozzles and hose reels are available as options for Armstrong hot and cold water hose stations.

The Armstrong Hot & Cold Hose Stations – Standard series is
supplied fully assembled and pressure tested in the following
configurations. Go to the menu bar above for specific detail on each
model.
