Titan’s YS81BC and YS82BC sizes 2½”and 3″ have a bolted cover as standard. An optional bolted cover is also available on size 2″. Cap covers are standard on YS81 and 82 sizes ¼”-1½”.
- Rugged – High Quality Design
The YS81 and YS82 are ideal for petrochemical and other demanding industrial applications that have higher pressure and temperature requirements.
- Large Straining Capacity
With its large body and sizable straining element, the YS81 and YS82 provide excellent open area ratios that are typically two-and-a-half times larger than the corresponding pipeline.
- Precision Machined Seats
Precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning. Also,the machined body seats enable finer filtration by preventing debris bypass.
- Self-Cleaning Capability
With the optional socket weld blow-off connection, this unit can be fitted with a blow-down valve which facilitates cleaning of the straining element.
- Epoxy Painted
Carbon units are epoxy painted to help resist rust and corrosion. Titan FCI also offers epoxy coating.

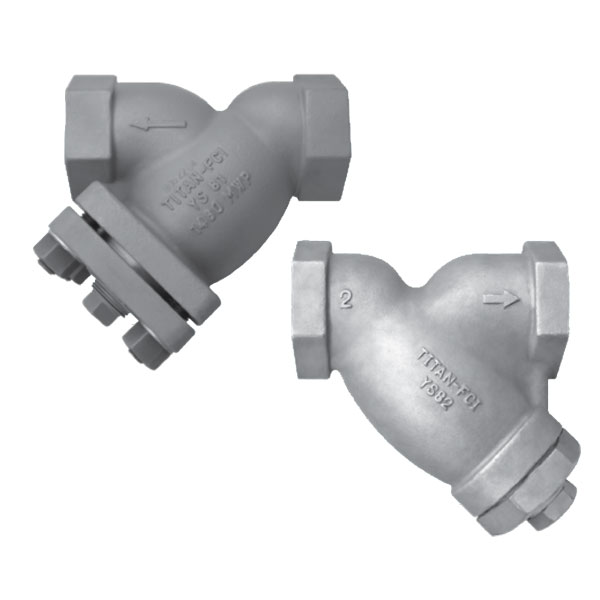

“Y” (WYE) STRAINER – YS 81/82
