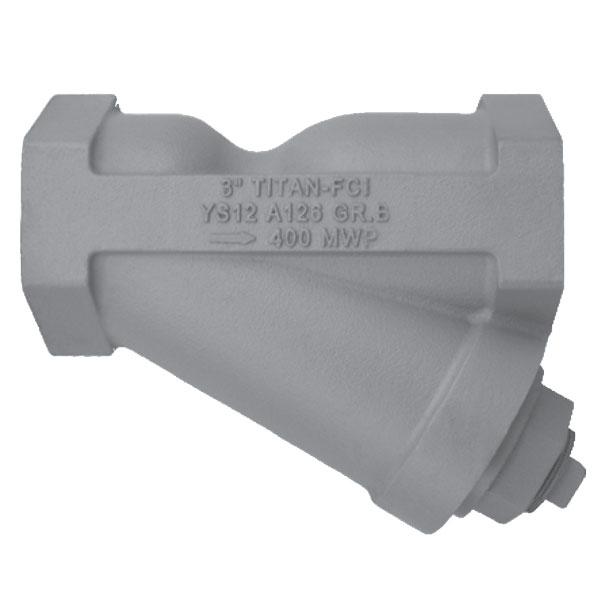

“Y” (WYE) STRAINER – YS 12-CI

Description

Download Center



Features

  • Large Straining Capacity
    With its large body and sizable straining element, the ys 12 provides excellent open area ratios that are typically two-and-a-half times larger than the corresponding pipeline.
  • Precision Machined Seats
    Precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning. also, the machined body seats enable finer filtration by preventing debris bypass.
  • Self-cleaning Capability
    With a tapped npt blow-off connection, this unit can be fitted with a blowdown valve which facilitates cleaning of the straining element. please contact factory for more information.
  • Epoxy Painted
    All units are epoxy painted to help resist rust and corrosion. titan fci also offers epoxy coating as an option for the ys12.
  • Potable Water / FDA Approved Coatings Available
    In addition to its lead free , cast iron body, titan can provide nsf/ansi and fda approved epoxy coatings which make this product suitable for potable water and food contact applications. Numerous options are available.
  • Threaded Cap
    Titan’s ys12 has straight threads to permit easy cap removal for cleaning and proper alignment when reassembling strainer.
  • Natural Gas and Other Special Applications
    Titan has extensively tested the ys12 in gas applications and determined that buna-n gaskets provide superb sealing capabilities for the service . Always specify if a special gasket or screen is required for a specific application.
