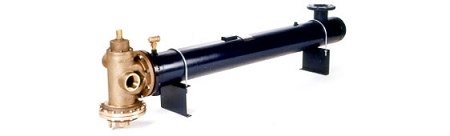

Flo-Rite-Temp Model 8120


Model 8120 Instantaneous Steam/Water Heater features a 8″ diameter
shell and a non-helical straight internal tube bundle with end cap.

Flo-Rite-Temp Model 8120 has 120 GPM capacity with 15PSI steam at a 100°F temperature rise.

Flo-Rite-Temp Model 8120 features a unique feed forward design which
features a differential pressure diaphragm actuated mixing unit integral
to a shell and tube heat exchanger.

The Flo-Rite-Temp Model 8120 mixing unit manages the water flow
through the heat exchanger based upon downstream hot water demand and
eliminates the requirement for a modulating steam control valve.

Operating on constant low pressure (2-15PSI) steam, the Flo-Rite-Temp
Model 8120 mixing unit supplies water to the heat exchanger where it is
overheated and then returned to the mixing unit for proportional
re-mixing with cold water to a pre-set outlet temperature.

Speed of Response

The differential pressure diaphragm within the mixing unit rapidly
responds to a change in system demand and significantly reduces the lag
times typically associated with feed back/modulating steam control valve

Failure Safe

The Flo-Rite-Temp Model 8120 mixing unit’s diaphragm actuated design
can be described as “failure safe” because in the event of a diaphragm
failure the mixing unit will fail with a cold bias and will not allow
hot water to exit the heat exchanger.

Temperature Control and User Safety

Capable of controlling outlet temperatures +/-4°F,
this principal of operation offers the additional relevant benefit of
reducing the waterborne bacterial content of the water during the
overheating process. In addition, with no water storage requirement,
Flo-Rite-Temp Model 8120 water heaters are a sensible selection as a
component of a broader system design initiative for Legionella risk

Ease of Maintenance

Accessible “non helical” admiralty brass straight
tubes inside the carbon steel shell available mechanical cleaning and
visual inspection. Non modulating constant steam pressure ensures
condensate drainage and removes the potential for water hammer damage
and corrosion. There is no steam control valve to maintain and typically
no supplemental condensate return equipment required.

Ease of Installation

No storage tank, small footprint, access via a
standard doorway and pre-piped packaged solutions reduce installation
time, space and expenditure.

  For submittal drawing refer to:
  Model 415   Single Wall   S5640
  Model 415DW   Double Wall   S5641
  Model 535   Single Wall   S5642
  Model 535DW   Double Wall   S5643
  Model 665   Single Wall   S5644
  Model 665DW   Double Wall   S5645
  Model 665SS   Stainless Steel   S5646
  Model 8120   Single Wall   S5647
  Model 8120DW   Double Wall   S5648
  Model 8120SS   Stainless Steel   S5649
