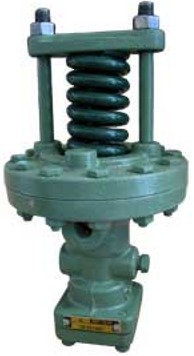

D Pressure Reducing Pilot

Description

Spence Engineering offers a wide range of pilots and accessories that work in conjunction with the Regulator line. These pilots and accessories give you the ability to customize your regulator to meet your specific application.

Download Center

Spence Engineering offers a wide range of pilots and accessories that work in conjunction with the Regulator line. These pilots and accessories give you the ability to customize your regulator to meet your specific application.

MODELS
● TYPE D for ±1 psi control of delivery pressures between 3 and 150 psi.
● TYPE D2 for control of delivery pressures between 100 and 300 psi.
● TYPE D5 for ±1/2 psi control of delivery pressures between 1 and 25 psi.
● TYPE D120 for exceptionally fast response controlling delivery pressures between 5 and 150 psi.

OPTIONS
● Spring Chamber
● Adjusting Handwheel
● Composition Disc
● Integral Mount Body
● Vacuum Spring Assembly

TYPICAL CONFIGURATIONS
PRESSURE REDUCING ……………………TYPE ED
PRESSURE REDUCING ………………….TYPE E2D
PRESSURE REDUCING ………………….TYPE E5D
PRESSURE REDUCING ………………….TYPE E6D
WATER PRESSURE REDUCING…………TYPE C34D
TEMPERATURE & PRESSURE …………TYPE ET14D



APPLICATION DATA
● Pressure Regulating for Steam Distribution
● Regulating for Process Control
● Can be used with Temperature Pilot to Regulate Pressure on
Temperature control Application RATINGS (Maximum Inlet Conditions)
Pressure Temperature
