- New Design With Gauge Taps
Titan’s ys61 has convenient gauge taps furnished with a plug on both the inlet and outlet sides of sizes 2″ through 24″. These taps allow for easy installation of pressure gauges to monitor differential pressure and determine when screen cleaning is necessary.
- Large Straining Capacity
With its large body and sizable straining element, the ys61 provides excellent open area ratios that are typically two-and-a-half times larger than the corresponding pipeline.
- Precision Machined Seats
Precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning . Also, the machined body seats enable finer filtration by preventing debris bypass.
- self-Cleaning capability
With a tapped npt blow-off connection, this unit can be fitted with a blowdown valve which facilitates cleaning of the straining element.
- Epoxy Painted
Carbon steel units are epoxy painted to help resist rust and corrosion. Titan fci also offers epoxy coating as an option for the ys61.
- Optional Cover Designs
Titan’s ys61 is available with different cover options including swing, clamp,
and hinge type covers.

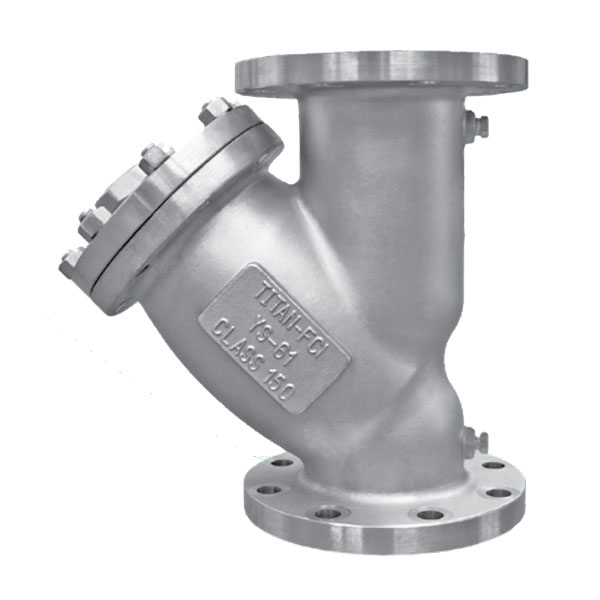

“Y” (WYE) STRAINER – YS 61
