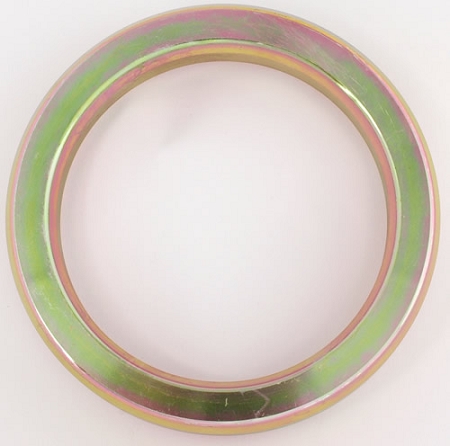

R-Octagonal Ring Type Joints

Categories: , ,

Description

Characteristics & Main Applications


The Style R ring type is manufactured in accordance with API 6A and ASME B 16.20, to suite API 6B and ASME/ANSI B 16.5 flanges. Style R ring type joints are manufactured in both oval and Octagonal configurations. Both styles are interchangeable on the modern flat bottom groove. Style R ring type joints are designed to seal at pressure up to 6,250 psi in accordance with API 6A pressure ratings.

Function & Durability

The performance and service life of KLINGER gaskets depend in large measure on proper storage and fitting, factors beyond the manufacture’s control. We can, however, vouch for the excellent quality of our products. With this in mind, please also observe our installation instructions.

Download Center

Product Literature
R-Octagonal Ring Type Joints
